Your smart thermostat might not be compatible with your system because of wiring differences, power requirements, or an incompatible HVAC system type. Many older systems use different wiring than modern smart thermostats expect.
You might also run into issues with a smart thermostat if your system is low-voltage or high-voltage, or if it lacks a common (C) wire. We found that system age and type often play a big role in these compatibility puzzles. It can definitely be frustrating when new tech doesn’t just “plug and play,” right?
- Wiring mismatches are a top reason for incompatibility.
- Older HVAC systems often lack a crucial “C” wire.
- Some smart thermostats require specific power setups.
- Your HVAC system type (e.g., millivolt, dual-fuel) matters.
- The thermostat’s voltage might not match your system’s.
Below, we’ll walk you through the most common reasons your smart thermostat might not be playing nice with your HVAC system. We’ll help you understand what’s going on and what you can do about it.

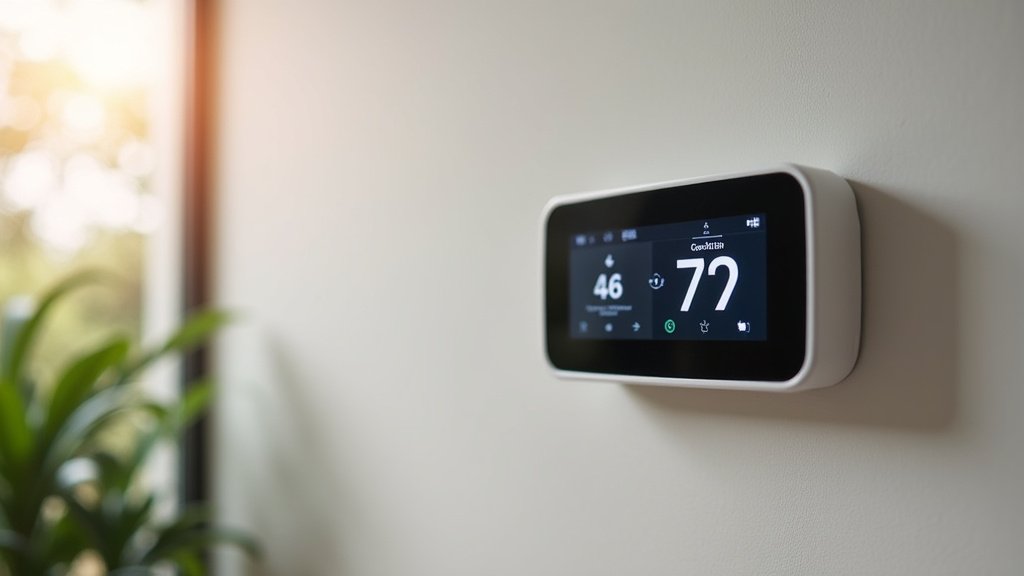

Why Your Smart Thermostat Might Not Connect
You’ve got your shiny new smart thermostat, excited to control your home’s temperature from your phone. But then, you hit a snag. It just won’t work with your existing HVAC system. Frustrating, right? We’ve all been there. It turns out, there are a few common culprits behind this compatibility puzzle.
Most issues stem from your HVAC system’s specific requirements not matching what the smart thermostat expects. Think of it like trying to plug a USB-C into an old USB-A port. They both handle data, but the connection just isn’t right.
Wiring Differences: The Most Common Hurdles
Wiring is often the biggest hurdle. Smart thermostats need specific wires to function correctly, especially for power and communication. Your current setup might not have them, or they might be configured differently. It’s like a language barrier between two systems.
The Missing C-Wire: A Power Problem
Many smart thermostats, especially those with advanced features and Wi-Fi, need a constant power source. This usually comes from a “C-wire” (common wire). This wire provides continuous 24V power, preventing the thermostat from relying solely on batteries or “power stealing” from other wires.
We found that older HVAC systems, especially those from before the 2000s, often lack a C-wire. They were designed for simple mechanical thermostats that didn’t need continuous power. Without it, your smart thermostat might flicker, constantly drop Wi-Fi, or not power on at all. It’s like trying to run a laptop on AA batteries – it just won’t cut it for long.
Some smart thermostats claim to work without a C-wire, often by using a power extender kit or by “power stealing.” While this can work for some, it sometimes leads to HVAC system malfunctions or inconsistent thermostat performance. It’s not always the ideal solution, we’ve found.
Low-Voltage vs. High-Voltage Systems
Most residential HVAC systems in the US are low-voltage (24V AC). Smart thermostats are designed for this voltage. However, some older systems, particularly baseboard heaters, radiant floor heating, or certain wall heaters, use high-voltage (120V or 240V AC). Connecting a 24V smart thermostat to a high-voltage system is not only incompatible but also extremely dangerous. It’s a fire hazard and can damage both your thermostat and your system.
Always check your system’s voltage requirements before purchasing a smart thermostat. This information is usually found on your existing thermostat or furnace control board. When in doubt, call a professional. Safety first, always!
Multi-Stage Systems and Zone Control
Do you have a multi-stage heating or cooling system? This means your furnace or AC can operate at different intensities (e.g., low fan speed, high fan speed). If so, your smart thermostat needs to be compatible with multi-stage control. Standard single-stage thermostats won’t have enough terminals to control all the stages.
Similarly, if you have a zone control system (different temperatures in different areas of your home), your smart thermostat needs to be specifically designed for zoning. Not all smart thermostats are. Some require a separate zone control panel. It’s like trying to manage several different concerts with a single microphone – you need the right equipment for the job.
HVAC System Types That Pose Challenges
Beyond wiring, the very type of HVAC system you have can dictate compatibility. Not all heating and cooling systems are created equal, especially when it comes to smart technology.
Millivolt Systems (Floor Furnaces, Wall Heaters)
Some older heating systems, like floor furnaces, wall heaters, or gas fireplaces, use a millivolt thermostat. These systems generate a very small electrical current (millivolts) to power the thermostat and open/close a gas valve. They don’t have a 24V transformer like most modern systems.
Smart thermostats typically require a 24V AC power source and cannot operate on a millivolt system without significant modifications or a special adapter. Trying to connect one directly will simply result in a non-functional thermostat. This is a common compatibility issue, we’ve found, for homes with vintage heating solutions.
Dual-Fuel Systems (Heat Pump with Furnace)
A dual-fuel system combines a heat pump (for efficiency) with a traditional furnace (for backup heat when it gets really cold). These systems can be tricky because they require careful coordination between two different heating sources. Your smart thermostat needs to be specifically programmed for dual-fuel operation to switch between the heat pump and the furnace efficiently.
If your smart thermostat isn’t compatible with dual-fuel, it might run both systems simultaneously, waste energy, or fail to engage the backup heat when needed. It’s like having two chefs in the kitchen, and they need a clear plan to work together.
Proprietary Systems and Communicating Thermostats
Some high-end or very old HVAC systems use proprietary communication protocols. This means they “talk” to their specific thermostat using a unique digital language, not the standard low-voltage wiring. You’ll often see only two to four wires, but they’re not the standard R, G, Y, W wires.
Attempting to replace a proprietary thermostat with a generic smart thermostat usually won’t work. These systems are designed to only communicate with their brand-specific controls. It’s like trying to use an Apple charger on a non-Apple device – the connection might fit, but the internal communication won’t happen.
Power Stealing: A Risky Workaround
For smart thermostats without a C-wire, some models use a method called “power stealing” or “power sharing.” This means they draw tiny amounts of power by cycling on and off very quickly, borrowing energy from the heating or cooling wires. While it can allow the thermostat to function, it’s not without its drawbacks.
- System Damage: Over time, power stealing can cause stress on your HVAC system’s transformer or control board, potentially leading to premature failure. We’ve seen this reported in various homeowner forums and by HVAC professionals.
- Intermittent Issues: Your thermostat might lose power, drop Wi-Fi, or cause your HVAC system to cycle erratically.
- Incompatibility with Sensitive Systems: Some HVAC systems are too sensitive for power stealing and will simply refuse to operate correctly with such a thermostat.
While power stealing might seem like a convenient solution, it’s generally best to install a C-wire or use a C-wire adapter kit for more reliable performance and system longevity.
Checklist: Why Your Smart Thermostat Isn’t Working
Let’s quickly review the main reasons your smart thermostat might be giving you trouble. Use this checklist to narrow down the problem:
- Does your HVAC system have a C-wire for continuous power?
- Is your system low-voltage (24V AC), not high-voltage or millivolt?
- Is your thermostat compatible with your HVAC system type (e.g., single-stage, multi-stage, heat pump, dual-fuel)?
- Are you trying to replace a proprietary thermostat with a universal smart one?
- Have you verified the wiring configuration matches the smart thermostat’s requirements?
Going through these questions often helps pinpoint the core issue. It’s like being a detective, looking for clues in your home’s HVAC setup.
When to Call a Professional
You’ve done your research, checked the wires, and read the manuals. But what if it’s still not working? Or what if you’re uncomfortable dealing with electrical wiring?
This is where a qualified HVAC technician or electrician comes in. They can accurately diagnose wiring issues, install a C-wire if feasible, or recommend a smart thermostat that’s truly compatible with your specific system. Many experts agree that for complex HVAC systems or uncertain wiring, professional installation is the safest and most effective path (Environmental Protection Agency).
Don’t be afraid to ask for help. A professional can save you time, frustration, and potential damage to your HVAC system or new smart thermostat. Sometimes, the right solution requires expert hands.
| Compatibility Factor | Common Issue | Smart Thermostat Requirement |
|---|---|---|
| Power Supply | Missing C-wire | Constant 24V power (C-wire) for advanced features |
| Voltage Type | High-voltage (120V/240V) or Millivolt | Low-voltage (24V AC) system |
| System Type | Single-stage, Multi-stage, Heat Pump, Dual-fuel | Must match thermostat’s supported configurations |
| Proprietary Control | HVAC system uses brand-specific communication | Needs specific brand-compatible or universal adapter |
| Zoning | Multi-zone home control | Thermostat designed for zone control or integrated with a zone panel |
Conclusion
Navigating smart thermostat compatibility can feel like a puzzle, but with the right information, you can solve it. We’ve seen that issues often come down to wiring, voltage, or your HVAC system type. Understanding these common pitfalls empowers you to make smarter decisions. Don’t let a missing C-wire or an older system deter you from smart home comfort. If you’re still unsure, remember that professional help is always a wise investment. They can ensure your system and smart thermostat work together seamlessly, bringing you the comfort and efficiency you desire.
Frequently Asked Questions
What if my smart thermostat says “no power” after installation?
If your smart thermostat shows “no power,” it’s often due to a missing C-wire or insufficient voltage. Most smart thermostats need a constant 24V power supply. Check your wiring diagrams to ensure all connections are correct, especially the common wire.
Can I install a C-wire myself to fix compatibility?
While some homeowners with electrical experience might attempt a C-wire installation, it’s generally best to hire a professional HVAC technician or electrician. Working with HVAC wiring involves safety risks and precise connections. An incorrect installation could damage your system or the thermostat.
Are there any smart thermostats that don’t require a C-wire?
Yes, some smart thermostats are designed to work without a C-wire, often using a power extender kit or internal batteries. However, these can sometimes lead to inconsistent performance or stress on your HVAC system. Always research the specific model’s requirements and user reviews.
How can I tell if my HVAC system is high-voltage or low-voltage?
You can usually find this information on your existing thermostat, furnace, or air handler’s label. Most residential forced-air systems are low-voltage (24V AC). If you see wires thicker than typical thermostat wires or experience a strong shock when touching them, you likely have a high-voltage system. Always consult a professional if you’re unsure.
Will a smart thermostat work with my radiant floor heating?
It depends on your radiant floor heating system. Many radiant systems are high-voltage or millivolt, which are not compatible with standard 24V smart thermostats. You’ll need a smart thermostat specifically designed for high-voltage or millivolt systems, or a professional might be able to install an appropriate adapter.
